Tesla Model S: Key Card

Tesla provides you with two Model S key cards, designed to fit in your wallet.

To use a key card to unlock or lock Model S, position the card as shown and tap it against the card reader located approximately one third the way up of the driver's side door pillar. When Model S detects the key card, the exterior lights flash, the mirrors unfold or fold (if Fold Mirrors is on), the horn sounds (if Lock Confirmation Sound is on), and the doors unlock or lock.

NOTE: You may need to physically touch the wireless phone charger or driver's side door pillar with the key card, and you may need to hold it against the transmitter for one or two seconds.

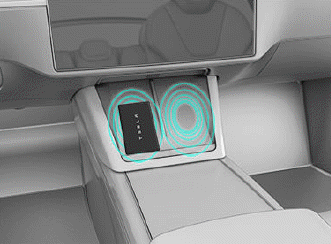

Once inside, power up Model S by pressing the brake pedal within two minutes of scanning the key card (see Starting and Powering Off). If you wait longer than two minutes, you must re-authenticate by placing the key card near the card reader located in the wireless phone charger on the center console. When your key card is detected, your two minute authentication period restarts.


NOTE: If enabled, Walk-Away Door Lock (see Walk- Away Door Lock) operates only when you walk away using a phone key or passive key fob. When you walk away carrying your key card, Model S does not automatically unlock/lock.


     Key Fob

    You can quickly familiarize yourself with the key fob by thinking of it as a miniature version of Model S, with the Tesla badge representing the front. The key has buttons that feel like softer are

     Passive Locking and Unlocking

    Locking and unlocking Model S with your key fob is conveniently hands-free. Although you must be carrying a paired key fob, there is no need to use it. Model S has sensors around the vehicle that c

     Managing Keys

    To display a list of all keys (phone keys, key cards, and key fobs) that can access your Model S, touch Controls > Locks. An icon displays next to each key to indicate whether the key is a phone


     Buckle Assembly - 2nd Row - LH (Remove and Replace)

    Warning: Prior to disconnection of 12 volt power supply, ensure driver's door glass is in the fully open position. Failure to follow this instruction could result in vehicle lockout. Warning: If 12 volt power supply is disconnected, do not attempt to open any doors with door glass in

     Cannot charge - Poor grid power quality possible

    Retry / Try other charge location or Supercharging Charging has stopped due to a condition that prevents your vehicle from charging with AC power. DC fast charging / Supercharging should still function as expected. This condition could occur due to power supply disturbances caused by the externa
